7.3mm Cannulated Screw

7.3mm Cannulated Screws

Product Overview

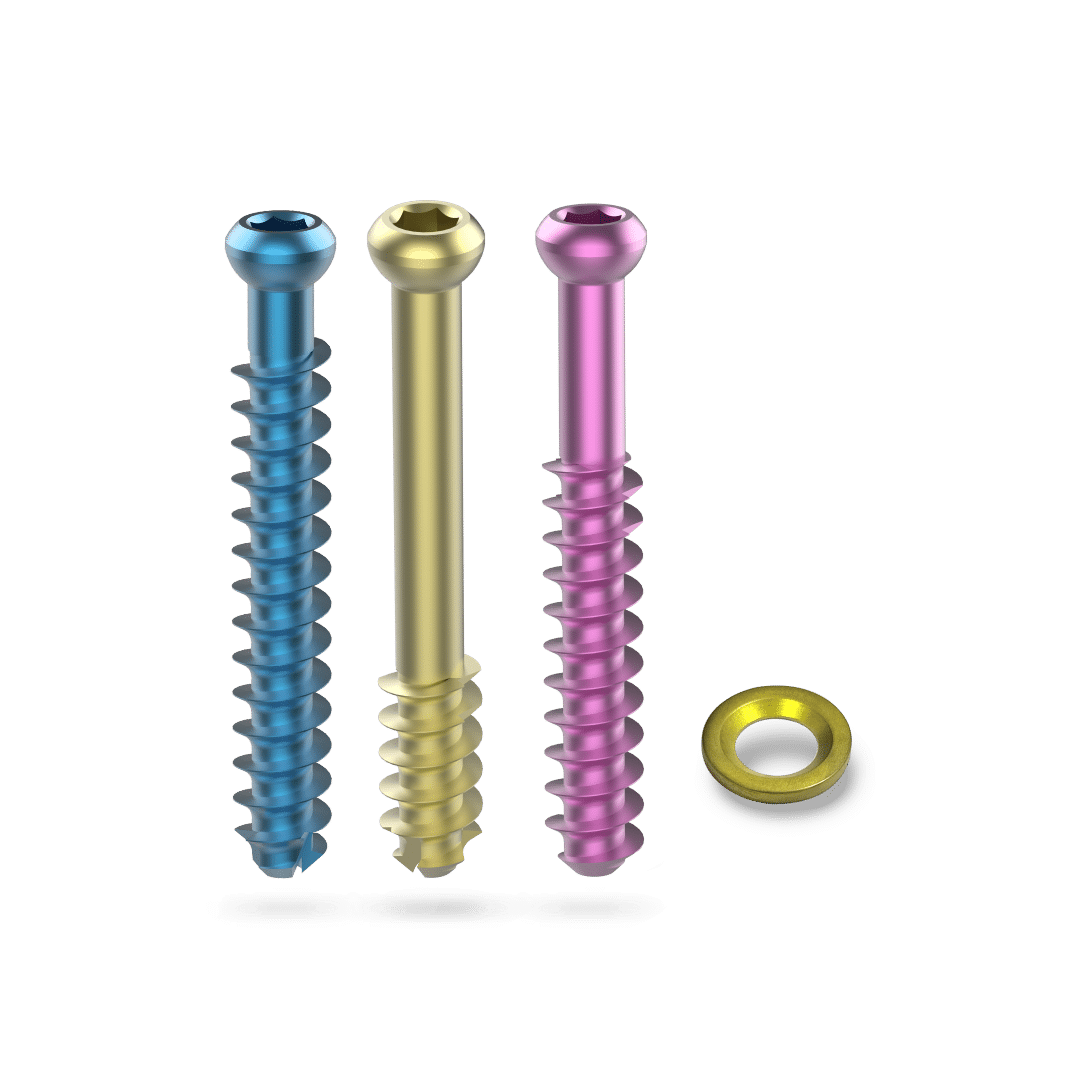

The 7.3mm Cannulated screw is a part of Auxein's bone screw system. The screw is available in 16mm, 32mm and full length lengths.

Cannulated screws are used in bone and joint surgery to repair breaks and to secure artificial implants which may be used to replace part or all of a joint. The main advantage of cannulated screws is that they can be inserted over a guide wire or guide pin. The diameter of the guide pin is much smaller than the cannulated screw and can be more accurately placed in operating room. The screw is available with washer. The threaded washer allows use of the 7.3mm cannulated screw in indications requiring a completely recessed screw head.

7.3mm Cannulated Screw

7.3mm Cannulated Screws

Product Overview

Product Features

Benefits

Cannulated shaft accepts 2.8mm diameter guide wires.
Hemispherical Head ensures optimal annular contact with washer and Auxein’s plates when screws are angled.
Low profile head reduces possibility of soft tissue irritation.
Reverse Cutting flutes assist in screw removal.
Choice of thread lengths offers best fit of threads into far bone fragment, for greater interfragmentary compression.
Cancellous thread profile uses deep cutting threads with a large pitch to increase resistance to pullout. The large pitch also accelerates screw insertion and removal.
Self-drilling, self-tapping screw tip facilitates screw insertion by eliminating the need of pre-drilling and tapping in most cases,

Intended Use

The 7.3mm Cannulated Bone Screws are intended for fixation of fractures, fusions, osteotomies, nonunions, and malunions of long bones and long bone fragments, pelvis, sacrum, and the bones of the foot in adults and in both children (2-12 years) and adolescents (12-21 years) in which growth plates have fused or in which growth plates will not be crossed by screw fixation.

Femoral neck fractures
intercondylar femoral fractures
ankle arthrodeses
iliosacral dislocations
Slipped capital femoral epiphyses
As an adjunct to DHS in basilar neck fractures
Tibial plateau fractures
Pediatric femoral neck fractures
Subtalar arthrodeses
