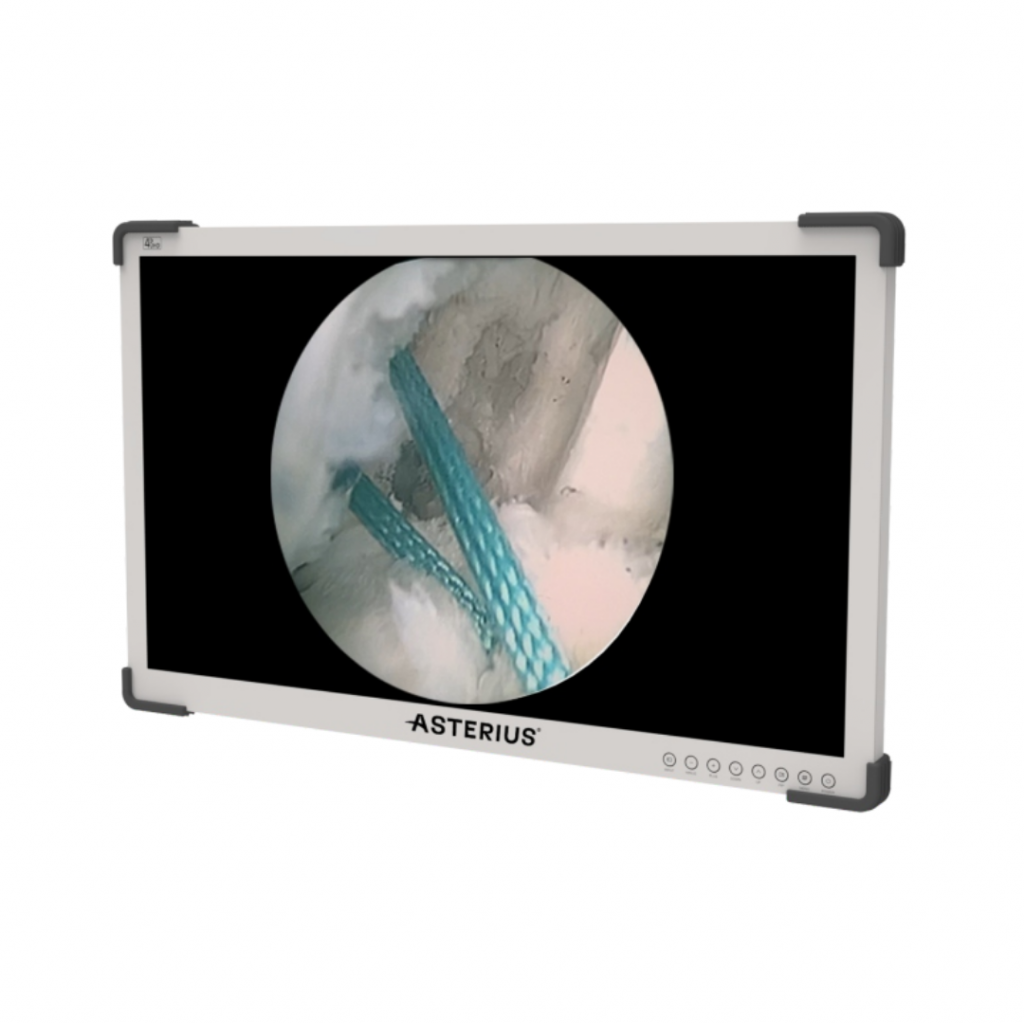

4K Monitor

4K Monitor

Product Features

  • High-Resolution Display: 32-inch TFT LCD (LED) panel with 3840 × 2160 UHD resolution for superior clarity.
  • Aspect Ratio: 16:9 widescreen, offering an optimal view.
  • Enhanced Color Accuracy: BT.709 and BT.2020 compatibility for precise color representation.
  • Brightness & Contrast: 700 cd/m² brightness and 1350:1 contrast ratio for high-visibility imaging.
  • Wide Viewing Angle: 178° (right/left & up/down) for clear visibility from different positions.
  • Anti-Glare Surface: Reduces reflections, improving visibility during surgery.
  • Low Latency: 9ms response time, ensuring real-time display without lag.
  • Multiple Input/Output Options:
    • Input: 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI, 4 x SDI (3G) / 2 x SDI (12G) (depends on version).
    • Output: 1 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G), 2 x SDI (12G) (depends on version).
  • Durability & Protection:
    • IP Code: IP33 overall, IP44 front side only (resistant to water splashes and dust).
    • IK Code: IK07 with 5H AR glass (impact-resistant).
  • Power Supply: AC/DC Adaptor (AC 100-240V~, DC 24V 6.25A).
  • Accessories Included:
    • User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, DVI-D cable, BNC cable (SDI models), Screw BH M4 x 14.
  • Compact & Lightweight:
    • Monitor Weight: 11.56 kg (25.49 lbs.).
    • Shipping Package Weight: 16.83 kg (37.10 lbs.).
    • Monitor Dimensions: 773(W) × 478(H) × 75.2(D) mm.

Intended Use

The 4K Medical Monitor is designed for use in operating rooms, surgical suites, and medical imaging environments. It is particularly suitable for:

  • Arthroscopic and minimally invasive surgeries requiring precise, real-time imaging.
  • Medical endoscopy, ensuring detailed visualization.
  • Surgical training and education, providing high-quality visuals.
  • Radiology and diagnostic imaging.
