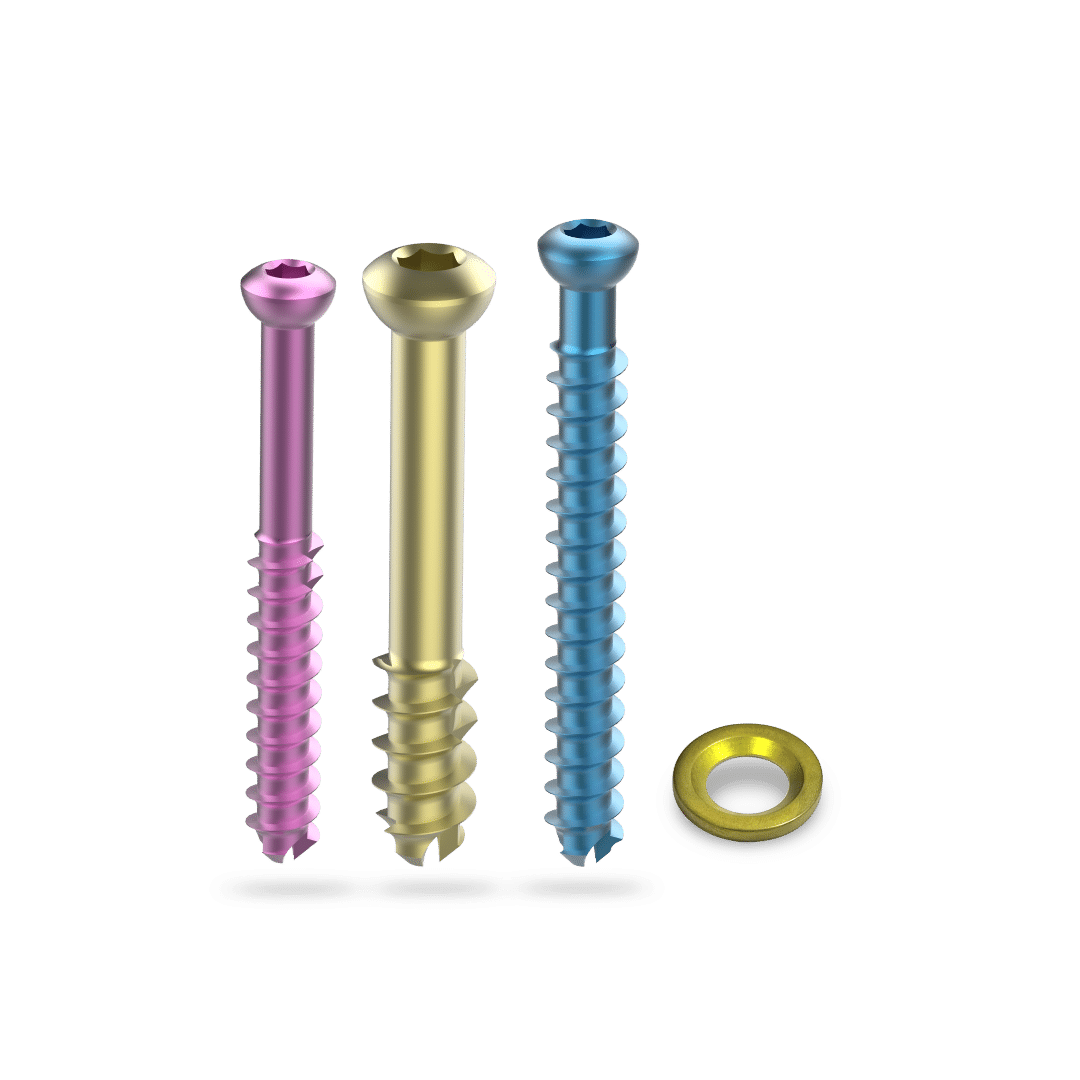

6.5mm Cannulated Screw

6.5mm Cannulated Screw

Product Features

  • Cannulated shaft accepts 2.0mm diameter guide wires.
  • Hemispherical Head ensures optimal annular contact with washer and Auxein’s plates when screws are angled.
  • Low profile head reduces possibility of soft tissue irritation.
  • Standard 3.5mm hexagonal drive is compatible with screwdrivers.
  • Reverse Cutting flutes assist in screw removal.
  • Choice of thread lengths offers best fit of threads into far bone fragment, for greater interfragmentary compression.
  • Cancellous thread profile uses deep cutting threads with a large pitch to increase resistance to pullout. The large pitch also accelerates screw insertion and removal.
  • Self-drilling, self-tapping screw tip facilitates screw insertion by eliminating the need of pre drilling and tapping in most cases.

Intended Use

The 6.5mm Cannulated Bone Screws are intended for fixation of fractures, fusions, osteotomies, nonunions, and malunionsof long bones and long bone fragments, pelvis, sacrum,, and the bones of the foot in adults and in both children (2-12 years) and adolescents (12-21 years) in which growth plates have fused or in which growth plates will not be crossed by screw fixation.

  • femoral neck fractures
  • intercondylar femoral fractures
  • ankle arthrodeses
  • iliosacral dislocations
  • Slipped capital femoral epiphyses
  • As an adjunct to DHS in basilar neck fractures
  • Tibial plateau fractures
  • Pediatric femoral neck fractures
  • Subtalar arthrodeses

Related Documents

Tarsus Nail Catalogue

Tarsus Nail Surgical Technique

Tarsus Nail IFU

CE Approved

USFDA 5K Cleared
