4.5-5.0mm AV-WISELOCK Osteotomy System

4.5-5.0mm AV-Wiselock <br>Medial Opening HTO + <br>Ligamentoplasty & <br>Button Plate

4.5-5.0mm AV-Wiselock Medial Opening HTO + Ligamentoplasty & Button Plate

4.5-5.0mm AV-Wiselock <br />Osteotomy Lateral Distal <br />Femur Plate

4.5-5.0mm AV-Wiselock Osteotomy Lateral Distal Femur Plate

4.5-5.0mm AV-Wiselock <br />Osteotomy Medial Distal <br />Femur Plate

4.5-5.0mm AV-Wiselock Osteotomy Medial Distal Femur Plate

4.5-5.0mm AV-Wiselock <br />Osteotomy Medial High <br />Tibia Plate, Small

Two metal wrenches with perforated handles, one brown and one gray, laid diagonally on a white background

4.5-5.0mm AV-Wiselock Osteotomy Medial High Tibia Plate, Small

4.5-5.0MM AV-WISELOCK<br /> Osteotomy Medial<br /> High Tibia Plate

$Two metallic bone plates with multiple screw holes for fracture fixation used in orthopedic surgery.$

4.5-5.0MM AV-WISELOCK Osteotomy Medial High Tibia Plate

Product Overview

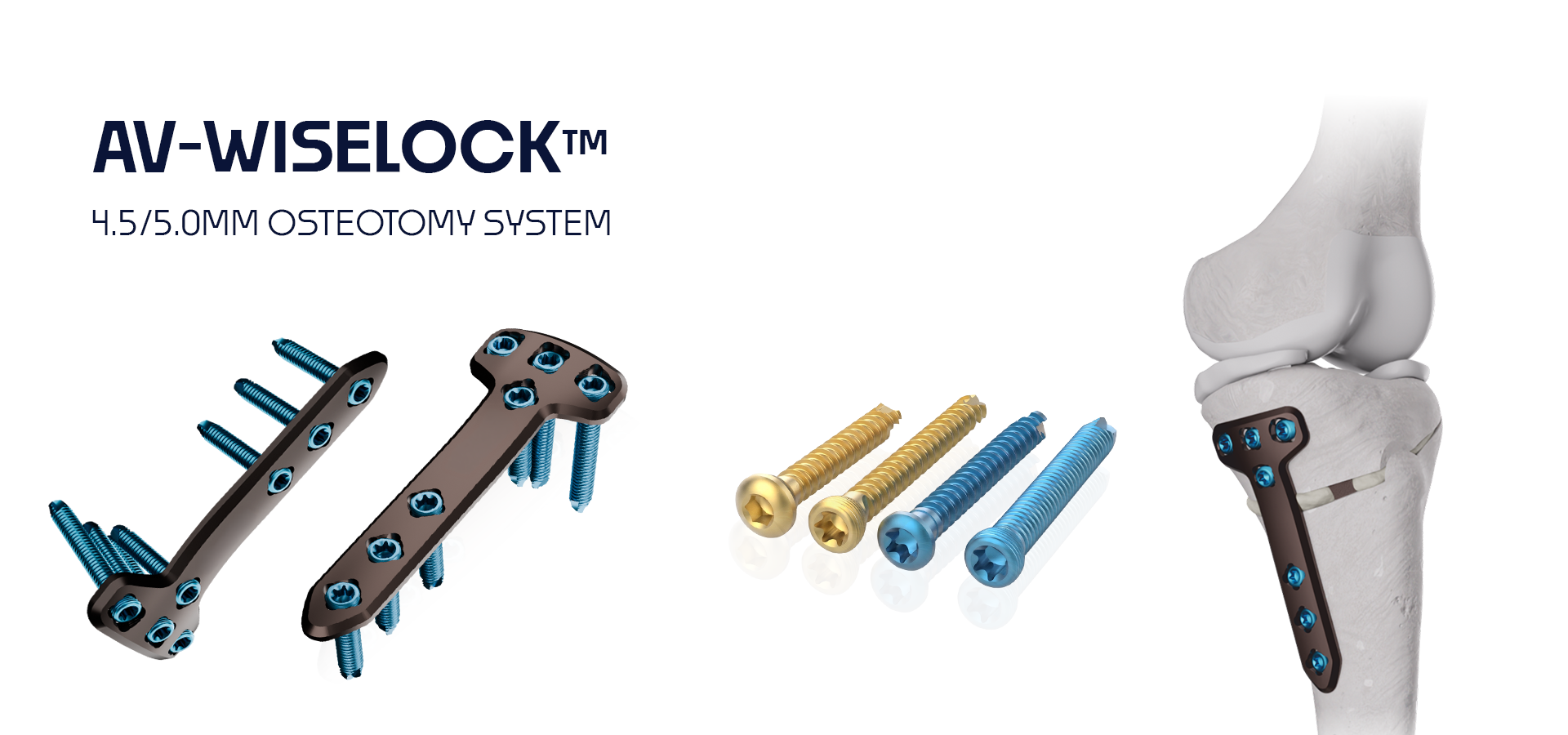

The 4.5/5.0mm AV-WISELOCK™ Osteotomy System is an advanced fixation platform designed for lower-limb deformity correction and joint-preserving osteotomy procedures. Engineered with Variable Angle Locking Technology, the system provides stable fixation, precise screw placement, and enhanced angular stability for High Tibial Osteotomy (HTO) and Distal Femoral Osteotomy (DFO) procedures. The anatomically contoured & low-profile plates are designed to support accurate realignment while minimizing soft-tissue irritation and promoting early patient mobilization.

4.5-5.0mm AV-WISELOCK Osteotomy System

$Two metal bone plates with multiple screw holes, one dark and one light, used for fracture fixation in orthopedic surgery.$

4.5-5.0mm AV-Wiselock Medial Opening HTO + Ligamentoplasty & Button Plate

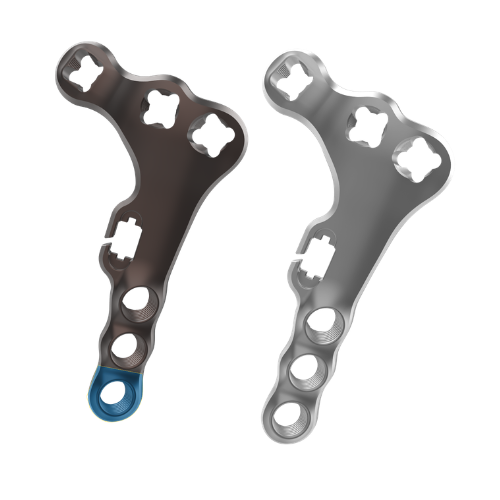

Two curved metal bone plates with multiple screw holes for orthopedic fixation, one with a blue-tipped end.

4.5-5.0mm AV-Wiselock Osteotomy Lateral Distal Femur Plate

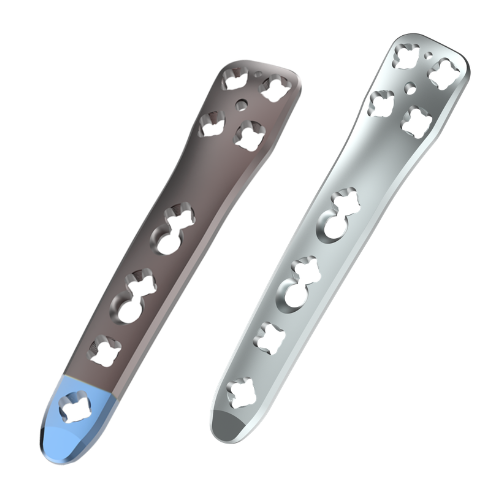

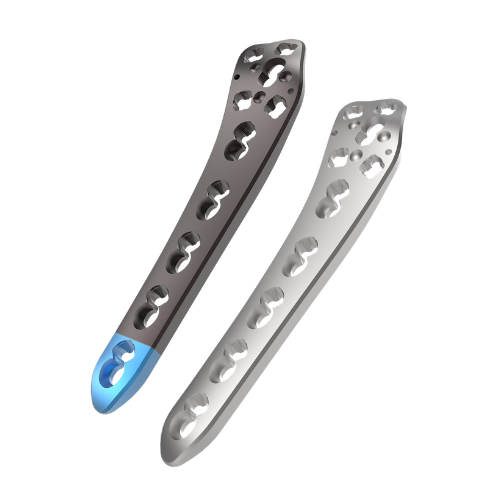

$Two curved metal orthopedic bone plates with multiple screw holes for fracture fixation.$

4.5-5.0mm AV-Wiselock Osteotomy Medial Distal Femur Plate

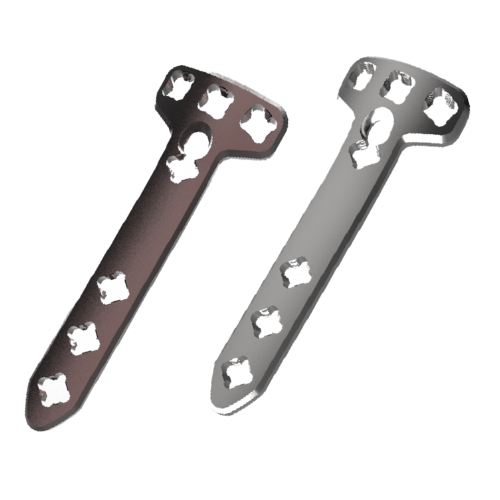

Two diagonal metal plates, one brown one gray, each with multiple circular holes along their length.

4.5-5.0mm AV-Wiselock Osteotomy Medial High Tibia Plate, Small

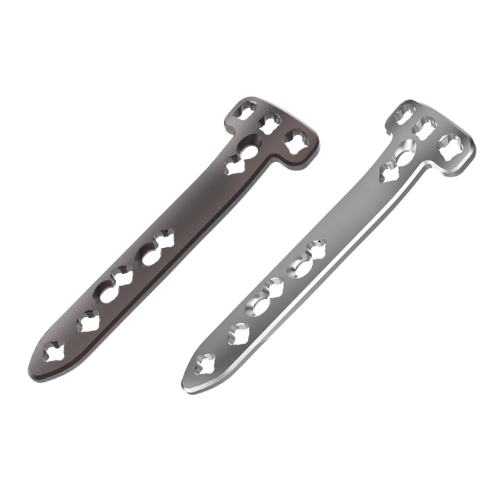

$Two curved stainless steel bone plates with multiple screw holes, used to stabilize fractures in orthopedic surgery$

4.5-5.0MM AV-WISELOCK Osteotomy Medial High Tibia Plate

Product Overview

Product Features

Benefits

Advanced Variable Angle Locking Technology Provides excellent angular stability, even in osteoporotic bone.
Anatomically contoured plate design minimizes intraoperative bending and improves fit.
4.5/5.0 mm Variable Angle Locking and Cortical screws offers strong construct.
Low-profile construct helps reduce soft-tissue irritation and enhances patient comfort.
Supports precise deformity correction and maintenance of alignment.
System offers Ligamentoplasty plate with Integrated Button to Supports correction of malalignment and ligament deficiency in one procedure.
Dedicated 7 plates in the portfolio to cover the Open and Closed wedge osteotomy procedures for Distal Femur and Proximal Tibia.
Available in both Titanium (ISO 5832-3) and Stainless Steel (ISO 5832-1).
Offered in sterile and non-sterile configurations.
Left and right-specific anatomical designs for improved surgical adaptability.
Comprehensive instrumentation system facilitates accurate osteotomy planning & execution and saves OR time.
Promotes early mobilization and accelerated rehabilitation.

Intended Use

The 4.5/5.0mm AV-WISELOCK™ Osteotomy System is intended for fixation of Proximal tibia and distal femur (Open and Closed Wedge) osteotomies, enabling lower-limb deformity correction, joint preservation, and restoration of physiological alignment in patients with osteoarthritis and malalignment disorders.
