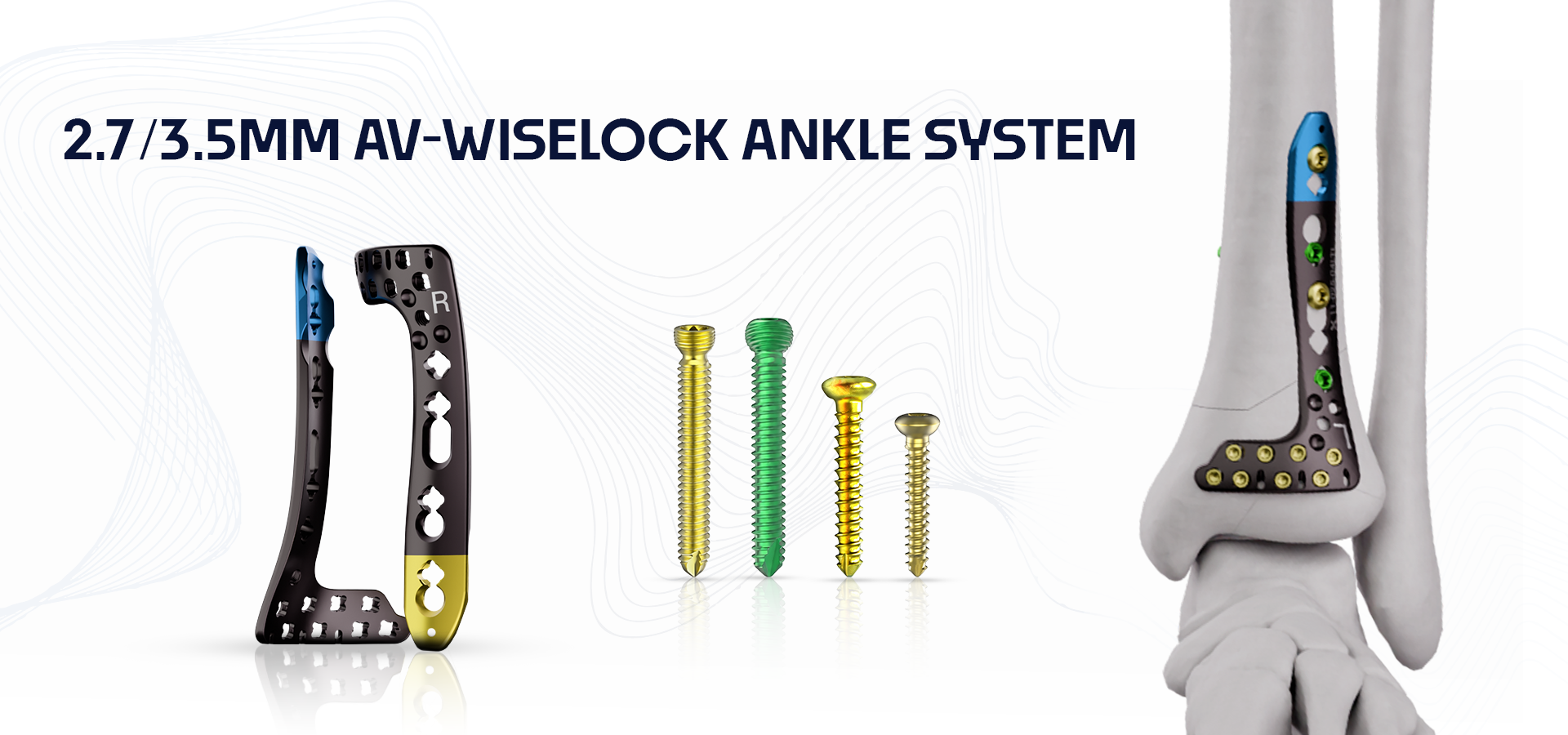

2.7/3.5mm AV-Wiselock™ Ankle System

Name of the Implant

Name of the Implant

Name of the Implant

Product Overview

The 2.7/3.5mm AV-Wiselock™ Ankle System is a comprehensive fixation platform designed for fracture management and reconstructive procedures of the distal tibia and fibula. Combining AV-Wiselock™ Variable Angle Locking Technology with conventional plating principles, the system provides stable fixation, intraoperative flexibility, and anatomical restoration across a broad range of ankle pathologies. The system features anatomically pre-contoured implants designed to match the native anatomy of the distal tibia and fibula, minimizing intraoperative plate modification while supporting precise fracture reduction and fixation.

2.7/3.5mm AV-Wiselock™ Ankle System

Name of the Implant

Name of the Implant

Name of the Implant

Product Overview

The system features anatomically pre-contoured implants designed to match the native anatomy of the distal tibia and fibula, minimizing intraoperative plate modification while supporting precise fracture reduction and fixation.

Design aligned with anatomy

Optimized anatomical profile
Fit to a wide range of anatomies
Facilitated anatomical reduction

Multiple plate options

The System consists of 2 types of plates with Different variants of length

curved version
standard version

Longitudinal rib

Improved fixation in the intramedullary canal
Angular rotation stability

Sharp tip

Facilitated insertion into the intramedullary canal

2 anatomically directed screws

Stable fixation of in the metatarsal head
Avoided collisions with articular surface
Enhanced plate and fixation stability

Special instruments

Specially designed for easy surgery
Dedicated targeter, raspator and other devices

Multiple screw options

Cortical and AV-Wiselock screws gives multiple strength in the implants.
Configuration for individual cases

Product Features

AV-Wiselock™ Variable Angle Technology allowing screw angulation of ±15° in all directions for optimized screw placement and fixation
Combi-hole design permitting the use of either locking screws for angular stability or cortical screws for compression within the same plate
Anatomically pre-contoured plates designed to match distal tibia and fibula anatomy
Fixed-angle locking zones in periarticular regions for enhanced stability in metaphyseal and osteoporotic bone
K-wire holes (up to 1.6mm) for provisional fixation and maintenance of reduction during surgery
Dedicated syndesmotic fixation slots facilitating flexible placement of syndesmotic stabilization constructs
Buttress plate configurations for support of partial articular and periarticular fracture patterns
Low-profile implant design to minimize soft tissue irritation
Available in Titanium (ISO 5832-3) and Stainless Steel (ISO 5832-1)

Surgical Technique Demo

Intended Use

The 2.7/3.5mm AV-Wiselock™ Ankle System is intended for fixation of fractures, osteotomies, nonunions, malunions, and reconstructive procedures involving the distal tibia and distal fibula in skeletally mature patients.

Indications
